Babyplast UAI – Hybrid
Babyplast UAI – Hybrid
Babyplast UAI – Hybrid
Babyplast UAI – Hybrid
Brand:
Babyplast

Babyplast UAI – Hybrid

Babyplast Horizontal – Hybrid

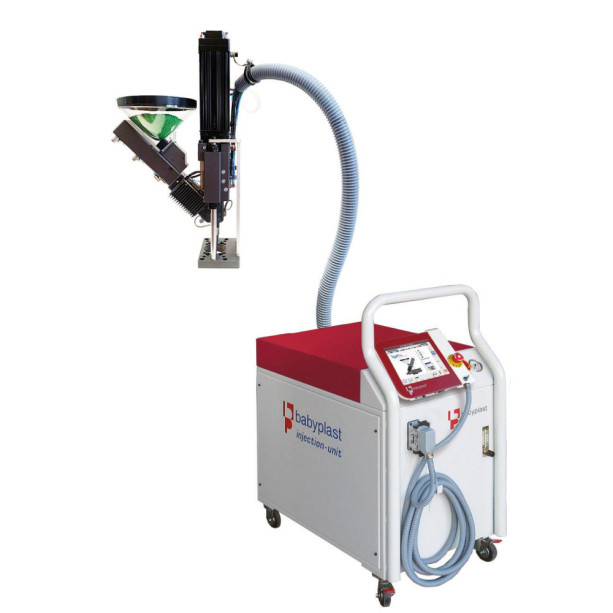

The Babyplast UAI Hybrid multi-component injection unit is designed for thermoplastics processing. The combination of electric speed and hydraulic power provides precision production performance. The smallest hybrid injection unit can be installed directly on the mould and a carriage that contains the proportional hydraulic unit and the control electronics. The connection to the main mould is simple and quick with the interface consisting of IN/OUT contacts with no voltage.

  • The completely autonomous Babyplast UAI injection unit converts any standard injection moulding machine to 2k or multi-component injection moulding machine. Interface integration could be as easy as plug and play or via current-free contacts of the injection moulding machine.

Babyplast UAI injection unit is available in Hydraulic and LSR.

Read moreShow less
Enquire Now
Enquire Now
Share
Benefits
  • Babyplast UAI injection unit is available in hydraulic and hybrid systems. The Versatile applications of Babyplast UAI help to achieve fast ROI.
  • Solution to material degradation. The unique plunger and piston system reduces material residence. The slow material melting process resulted in no friction and no shear heat on the material to guarantee quality parts. It is suitable for processing all thermoplastic types up to 420°C. Material like PP-PA-ABS to PC-PBT- POM-PPS-PEEK, including glass-filled materials. Rubbers(NBR), LSR (Liquid Silicone Rubber), Macro melt hot-melt material, metal (MIM),  ceramics (CIM) and wax.
  • One cycle multi-component moulding process reduces production by reducing production cycle time, parts rejection and material wastage compared to the traditional over moulding process.
  • The compact design reduces obstruction to other auxiliaries. The lightweight injection unit is easy to set up vertically or horizontally on mould or machine platen.
  • Integration with a customised injection press is possible on the assembly line is possible to reduce the production handling process.
  • The shot volume of less than 1 gram is possible with the unique plunger.
  • The highest precision quality parts are guaranteed with the pre-plastification plunger system. The slow material melting process resulted in no friction and no shear heat. One piston is used for all types of thermoplastic material.
  • 5 interchangeable piston diameters cater for specific shot volume requirements.
Read moreShow less
Technical Specs
Technical Data
Production
Medical
Medical
No. of Cavity: 1 | Material: Polypropylene | Part weight: 2.93g | Shot weight: 2.93g (direct nozzle) | General wall thickness: 0.5mm | Lid hinge wall thickness: 0.1mm
